PCB Pooling Techniques
Benefits & Limitations

What Is PCB Pooling?

PCB pooling is a special manufacturing technique where different customers’ PCB circuit designs are combined — or pooled — onto a single production panel.

Instead of dedicating an entire panel to just one project, the available panel area is shared between many designs belonging to different customers. This creates a free layout environment for production engineers to optimize panel use.

Pooling is enabled by modern online ordering systems, where you can upload your Gerber data, select from standard options (board thickness, copper weight, surface finish such as gold ENIG or HASL, green solder mask, etc.), and the manufacturer will intelligently combine your board with others.

Thanks to advances in CAM (Computer-Aided Manufacturing), and automated panelization software, PCB pooling today supports high quality even for complex boards.

Common features supported in pooling:
ENIG (Electroless Nickel Immersion Gold) or LF HASL
✅ Green solder mask (default, most economical)
✅ Standard
FR4 Tg 130, 150 or 170°C

Standard Stack-up and Thickness 1,6mm

Standard Cu Thickness 35µm (sometimes 70µm are available)

1- to 4-layer PCBs (sometimes more)
✅ Standard mechanical tolerances

Contour by milling
✅ Stencil services available

"It’s like carpooling for PCBs: Everyone shares the ride, everyone saves money!"

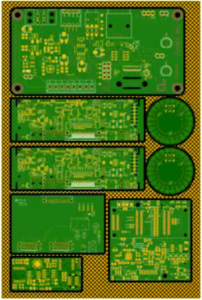

Standard Pooling / Multi-project Panel

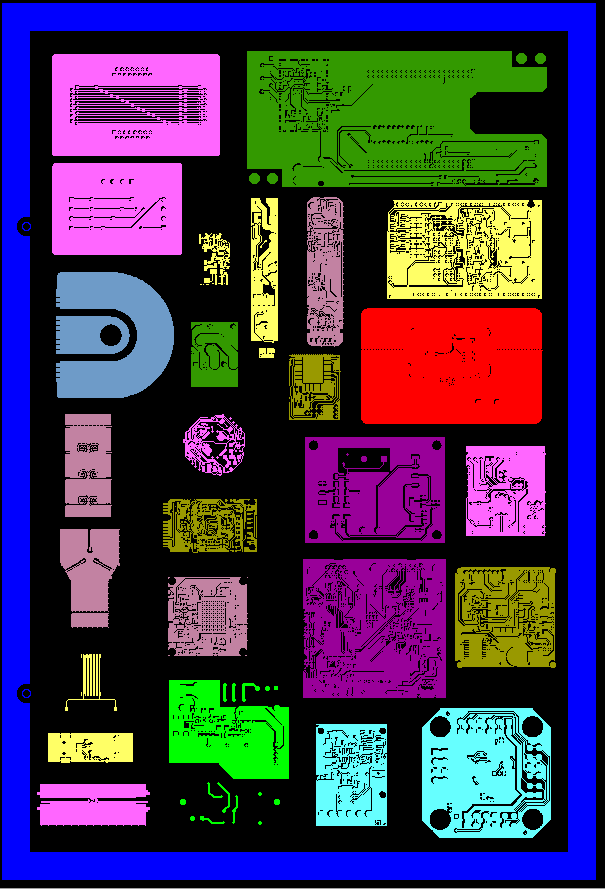

In standard pooling, your board is manufactured alongside many other unrelated customer boards. The CAM system automatically lays out many different projects on one large panel to maximize material usage.

You can order 5, 10, 50 pieces — you don’t have to fill a full panel yourself. The manufacturer does that for you. Because of this, you benefit from very low production costs, fast lead times, and no need to think about panel setup.

Benefits

  • Extremely low cost
  • Excellent for early-stage prototypes
  • Fast online ordering, stencils also available

Limitations

  • Must follow pooling house design rules
  • Limited material & finish choices
  • No control over exact panel layout

Use Case:

Simple 2- or 4-layer rigid PCB prototypeperfect candidate.

Single-project Panel / Dedicated Panel

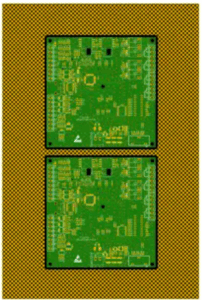

In this technique, your entire circuit design occupies its own panel. You may choose to fill it with multiple copies of your board, arrayed for efficient assembly (Your Gerber package needs to be stepped up in panel with frame, break-off tabs and 2 mm milling board-to-board and board-to-frame).

Even though your project uses a full panel, your order might still be produced alongside other such panels from other customers in a pooled production batch — optimizing machine utilization.

Benefits

  • Full freedom Suitable for assembly line
  • Tighter process control (layers, materials, stack-up)
  • Optimized for volume or pilot production

Limitations

  • Slightly higher cost than pure pooling
  • Requires panel design
  • Less flexible for ultra-low-volume orders

Use Case:

Series production of a tested design ready for market.

PCB Panelization Comparison

Summary Table

Technique Cost Flexibility Ideal for Limitations
Standard Pooling Very low Low Simple PCBs, Prototypes Few options
Single-project Panel Medium High Production runs, Assembly Higher cost

PCB pooling is an incredible enabler of innovation:

  • Designers can create green solder-masked prototypes with ENIG gold pads for the price of a dinner.

  • Small companies can validate PCB assemblies in days.

  • Free panelization allows engineers to focus on design — not manufacturing constraints.

However, it’s vital to choose the right pooling strategy for your project:

  • For cost-driven prototypes: Standard pooling.

  • For production-ready boards: Single-project panel

And remember — if you’re ordering solder stencils for assembly, most pooling services offer them as one-click options, perfectly matching your pooled panel.

PCB Pooling FAQ

Common Questions From PCB Purchasers


What is the main advantage of PCB pooling?

The main advantage is cost savings: by pooling your design with others on a shared panel, you avoid paying for an entire panel yourself.
You also save on setup costs, CAM preparation, and tooling fees.


Is the quality of pooled PCBs the same as that of dedicated production?

Yes — when used correctly.
PCB manufacturers use the same
professional equipment (drills, presses, plating lines, milling machines) for pooling as for full-custom production.
The only limitations are around options and tolerances, not base quality.
Most pooling services deliver IPC class 2 by default.


Can I specify my own panel layout in pooling?

In standard pooling, no — the panel layout is handled automatically by the manufacturer.
In
single-project panel pooling, yes — if you provide your Gerber in stepped panel design format


Are gold-plated boards (ENIG) supported in pooling?

Yes — most pooling services offer ENIG (Electroless Nickel Immersion Gold) as a standard finish.
ENIG can be used for:

  • THT, SMD & BGA technology

  • Edge connectors

  • Corrosion resistance

  • Long shelf life


Is there any limit on drills or vias in pooling?

Most pooling services today offer unlimited drills within reason (e.g. up to ~5,000-10,000 holes per PCB).


Can I use exotic materials in pooling?

In standard pooling: no — you’re limited to common FR4 (usually Tg130, Tg150 or Tg170).

For aerospace, RF, or high-power PCBs: consider
dedicated production.


Are flexible and rigid-flex PCBs supported in pooling?

A few services now offer rigid-flex pooling and flex pooling.
Check carefully: not all pooling houses support this yet, and lead times are typically longer.


Can I order a matching solder stencil with my pooled PCBs?

Absolutely — most pooling services offer laser-cut solder paste stencils with your order.
You can choose:

  • Framed stencil (for production)

  • Frameless stencil (for prototype assembly)


Is PCB pooling suitable for mass production?

No—pooling is mainly for prototypes, small series, or pilot runs.
For volumes above ~50–100 pcs:

  • Use a dedicated production panel.

  • Optimize panel utilization for your own pick & place process.

  • Achieve best cost per board at volume.


How can I avoid problems when using pooling?

Here are key tips:

Always download the pooling house’s design rules (track width, spacing, drills, clearances, annular ring Cu thickness & stack-up).
✅ Use the
correct stackup file or material definitions in your PCB CAD software.
✅ Avoid using
ultra-small drills (below 0,3mm) or very thick copper unless the service supports it.
